Pipe Flange: Schedule 40 Socket Weld Flange, 316/316L Stainless Steel, 1 in Pipe Size
- Item # 4HVU6
- Mfr. Model # 4381005620
- UNSPSC # 40142409
- Catalog Page # 2786 2786
Country of Origin
China.
Country of Origin is subject to change.
Flange is counter-bored to accept pipe before being fillet welded; a lip supports pipe while welding. Suitable for use with Schedule 40 or 80 stainless steel pipe, in applications with air, water, natural gas, and steam.
Tap image to zoom.
Roll over image to zoom.

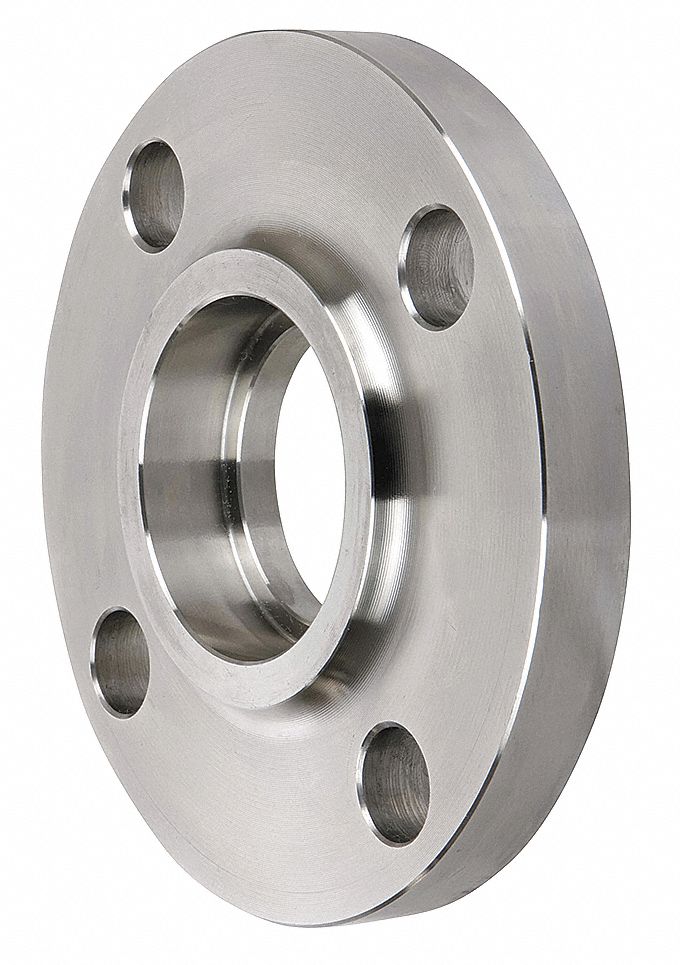

Pipe Flange: Schedule 40 Socket Weld Flange, 316/316L Stainless Steel, 1 in Pipe Size
- Item # 4HVU6
- Mfr. Model # 4381005620
- UNSPSC # 40142409
- Catalog Page # 2786 2786
Country of Origin
China.
Country of Origin is subject to change.
Flange is counter-bored to accept pipe before being fillet welded; a lip supports pipe while welding. Suitable for use with Schedule 40 or 80 stainless steel pipe, in applications with air, water, natural gas, and steam.
Technical Specs
- Specific Fitting Shape Schedule 40 Socket Weld Flange
- Connection Surface Raised Face
- Nominal Pipe Size 1 in
- Fitting Connection Type Flanged x Socket Weld
- Flange Outside Diameter 4 7/8 in
- Flange Thickness 11/16 in
- Overall Length 1 1/16 in
- Pipe Fitting Material 316/316L Stainless Steel, Stainless Steel
- Material Grade 316/316L
- Class Class 300
- Maximum Operating Pressure 720 psi
- Max. Steam Pressure 300 psi
- Number of Bolt Holes 4
- Bolt Circle Diameter 3 1/2 in
- Bolt Hole Diameter 3/4 in
- Standards ASME A182, ASME B1.20.1, ASME B16.5
Flange is counter-bored to accept pipe before being fillet welded; a lip supports pipe while welding. Suitable for use with Schedule 40 or 80 stainless steel pipe, in applications with air, water, natural gas, and steam.
